Product Details

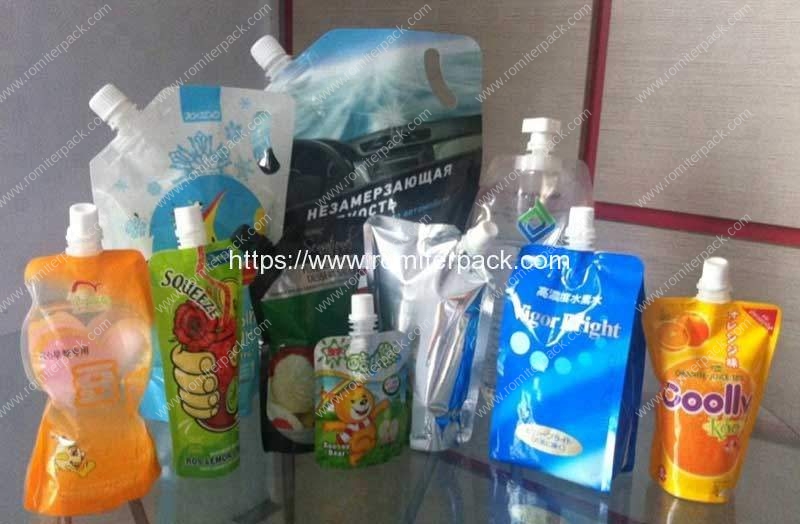

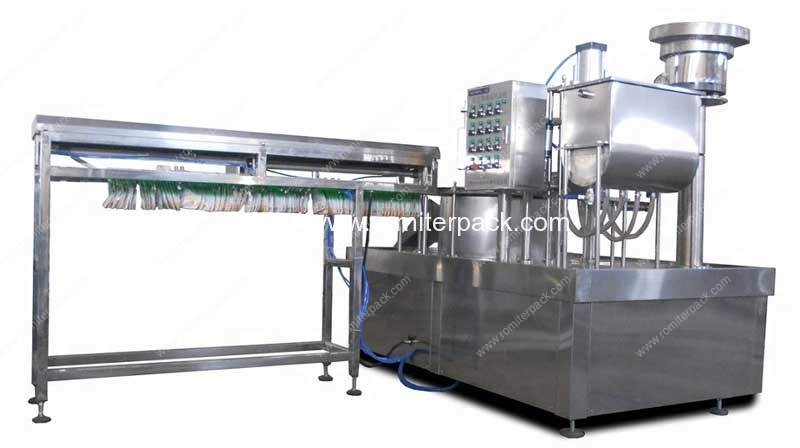

Manual Nozzle Bag Feeding Paste Filling Capping Machine is suitable for liquid or semi-liquid nozzle bag filling capping. it can be used for packing jelly, soy milk, yoghourt, mineral water, juice, ice cream, edible oil, seasoning, scour, laundry detergent and so on. Romiter Doybag Nozzle Bag Filling Packing Machine complete following process include liquid or paste filling, spout head washing, cap feeding and inserting, capping (applying magnetic adjusting torque for rather stability) and discharging, which realize whole filling and capping automatic complete. All of these functions can be added or removed according to the clients’ requirements.
Specification of Automatic Doy Bag Feeding Filling Capping Machine
| Model | RM-DPN1M | RM-DPN2M | RM-DPN3M | RM-DPN4M | RM-DPN5M | RM-DPN6M | |
| Filling Head | 1 | 2 | 3 | 4 | 5 | 6 | |
| Packing Speed | bags/h | 600-1000 | 1200-2000 | 1800-3000 | 2400-4000 | 3000-5000 | 3600-6000 |
| Filling Volume | ml | 5-3000 | 5-3000 | 5-3000 | 5-3000 | 5-3000 | 5-3000 |
| Power | kw | 1.5 | 2.5 | 2.5 | 4 | 4.5 | 5 |
| Air Pressure | Mpa | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 | 0.5-0.7 |
| Air Consumption | m3/min | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
| Main Dimension | mm | 1800*1200*1800 | 2100*1350*1880 | 2100*1300*1970 | 2300*1500*1970 | 2500*1600*1970 | 2500*1600*1970 |
| Bag Feeding Dimensoin (Optional) | mm | 1650*350*1200 | 1600*400*1250 | 1950*400*1400 | 2350*400*1400 | 2350*400*1400 | 2350*400*1400 |
| Weight | kg | 1200 | 1400 | 1600 | 1800 | 2000 | 2100 |
