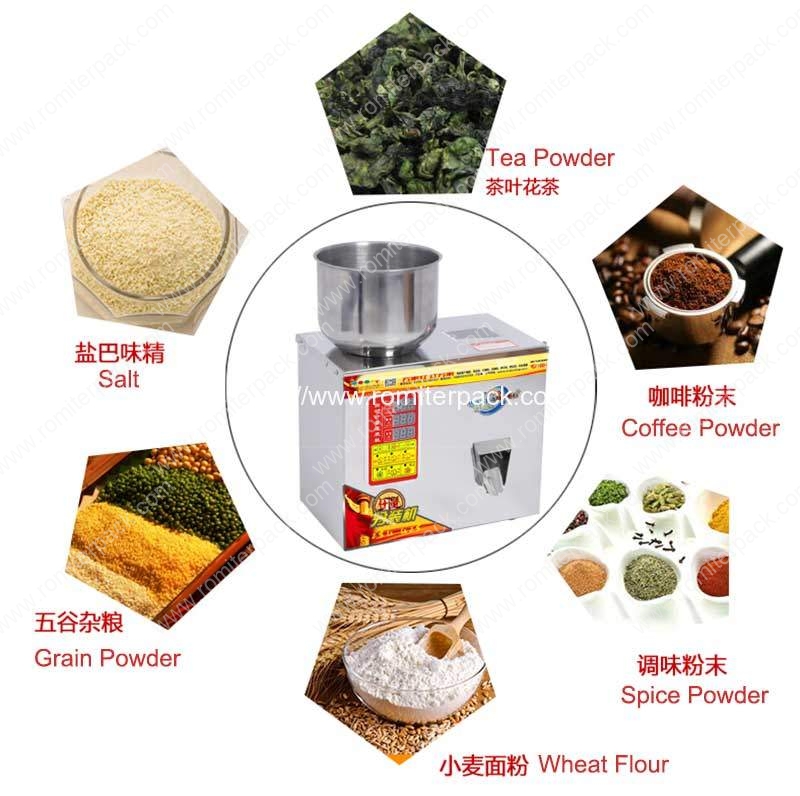

Automatic Small Powder Scaling Filling Machine is used to scale powder and filling setting weight. It is suitable for lour, milk powder, plaster, chemical powder, powder, coffee powder, powder, coarse powder, granule, medicinal herbs, seeds, food, sesame seeds, grain crops, Chinese wolfberry, Tea, rice, gourmet powder, salt, spices, beans, chemical components, electronic components, hardware components.
Features of Automatic Small Powder Scaling Filling Machine
- microcomputer control self-energy, so that more precise and accurate dispensing, fast, fully automated dispensing process.
- The contact material parts all stainless steel, no contaminated material.
- double shock structure, the machine is running smoothly, low noise
- small size, light weight..
- minimal power, energy conservation..
- oblique throwing feeding, do not squeeze the material damage, especially for fragile materials packaging.
- Show Package weight and number of packages.
- Adjustable packing speed.
- Set weighing excessive alarm.
- stainless steel, never rust.
Manual Instructions
- Remove the three bolts under the machine, which have been marked
- Plug the machine into power, open the switch on the left side of the machine and the control panel will be lighten, the machine then comes into readiness status
- Pour the material that you need to fill into the hopper, and then press the buttons on the control panel to set the packing amount
- Choose the working speed according to your items
- After you choose speed, then you could press start button to make the machine work automatically.( When blue light shows that means work, when red light shows that means stop working.)
- After the filling work is finished, put your hand nearside the Infrared sensors of the outlet shoot and then the material will pour out
Specification of Small Powder Scaling Filling Machine
| Model | Accuracy | Range | Hopper Size | Speed | Voltage | Dimension | Weight |
| RM-PF50 | 0.2g | 1-50g | 21*21*15.5cm | 10-15/min | Single Phase | 38*23*51cm | 10.5kg |
| RM-PF100 | 0.2g | 1-100 | 21*21*19cm | 10-15/min | Single Phase | 38*23*54cm | 11kg |
| RM-PF3000 | 2g | 20-3000g | 30*29*30cm | 10-15/min | Single Phase | 58*35*130cm | 32kg |
| RM-PF5000 | 2g | 20-5000g | 30*29*34cm | 10-15/min | Single Phase | 58*35*145cm | 36kg |
