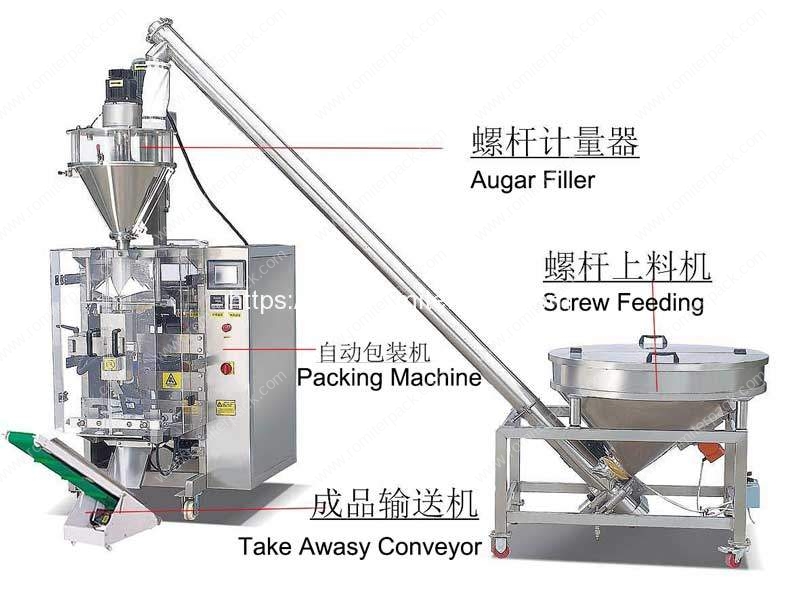

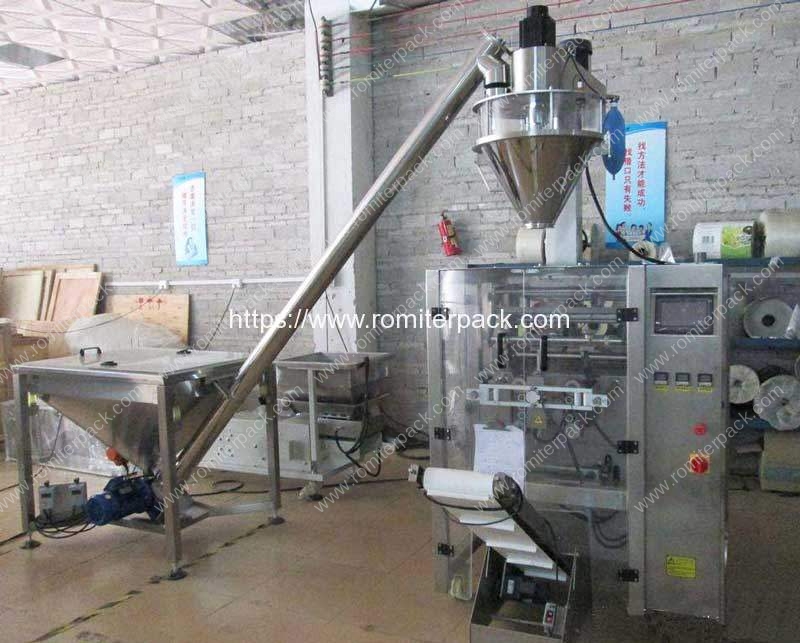

Washing Powder Packing Machine is used to pack various fine powders, like milk powder, flour, coffee powder, soybean powder, medicine powder, cosmetic powder, facial mask powder, starch, etc. Washing Powder Packing Machine packing machine conforms to the food processing machinery’s sanitation standard. It’s a fully automated operation, is improved and the production of a kind of high quality, high-performance automatic packaging machine, complete automatic feeding, measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions. According to customer requirements, this machine can pack back a sealing bag, pillow bag and pouch bag.
Main feature of Washing Powder Packing Machine
- PLC control with stable and reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, and finished in one operation.
- Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable
- Filmpulling with servo motor double belt: less pulling resistance, the bag is formed in good shape with better appearance; belt is resistant to be worn-out.
- Double servo control, high precision orientation, size more nicety.
- External film releasing mechanism: simpler and easier installation of packing film.
- Adjustment of bag deviation just needed to be controlled by the touch screen. The operation is very simple.
- Close down type mechanism, defending powder into the inside of the machine.
- The machine adopts servo motor control, screw measuring, precision 1%.
- Adjustment product weight without any tools.
- The filling head can be changed, suitable for mix film and PE film.
Specification of Full Automatic Powder Packing Machine
| Type | RM-D420 | RM-D520 | RM-D720 | RM-D820 | |
| Bag Length | mm | 50-300 | 80-400 | 120-500 | 100-500 |
| Bag Width | mm | 50-200 | 80-250 | 120-350 | 250-400 |
| Max Film Width | mm | 420 | 520 | 720 | 820 |
| Packing Speed | bags/min | 5-70 | 5-70 | 5-60 | 5-50 |
| Measuring Range | ml | 100-1200 | 3000 | 5000 | 15L |
| Air Consumption | Mpa | 0.65 | 0.65 | 0.65 | 0.65 |
| Gas Consumption | m³/min | 0.3 | 0.3 | 0.5 | 0.8 |
| Power | kw | 2.2 | 4 | 5 | 5 |
| Dimension | mm | 1470*1160*1450 | 1570*1255*1600 | 1745*1362*1700 | 1600*1530*2110 |
| Weight | kg | 500 | 600 | 700 | 850 |
Working Video of Automatic Powder Weighing Filling Bag Packing Machine
